18. Der stürmische Morgen. (The Stormy Morning)

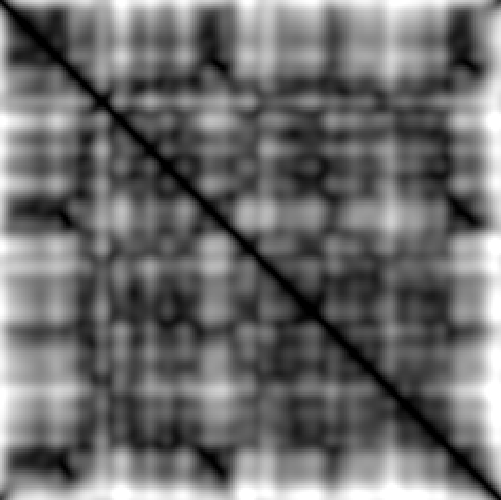

feature MFCCPHASE representation

Piece:

18. Der stürmische Morgen

Durchkomponiertes Strophenlied in d-moll mit drei Strophen. [more]

Musical aspect/feature:

timbre/MFCC+phase

Magnitude spectogram (3 sec) weighted by amount of rapid phase changes. [more]

Recording:

Gardner Museum: Scarlata, 2006

Singer: Randall Scarlata (Baritone), Piano: Jeremy Denk. Recording of a performance at the Isabella Stewart Gardner Museum, Boston.

Source, License: CC BY-NC-ND 2.0

Information about our segmentation of »18. Der stürmische Morgen«

Durchkomponiertes Strophenlied in d-moll mit drei Strophen.
Die Segmentierung entspricht im Wesentlichen der Stropheneinteilung. Es wird keine Strophe wiederholt.
Es lässt sich eine dreiteilige Form erkennen: ABA' (I A1 B A2) mit einem instrumentalen Vorspiel I;
Der erste und der letzte Teil stehen zum großen Teil in d-Moll.
Der Mittelteil steht in B-Dur.
A2 stellt eine Variation von A1 dar, wobei die ersten zwei Takte von A2 mit dem dritten und dem vierten Takt von A1 übereinstimmen.
Auch die Schlusspassage von A2 ist mit der Schlusspassage von A1 identisch.

Lyrics: Project Gutenberg

MFCC (Mel Frequency Cepstral Coefficients)

This feature was originally developed for speech analysis and speaker recognition. After transforming a musical signal in a spectrogram representation, MFCC-based features are computed by combining suitable frequency bands into percepually inspired Mel bands and applying a decorrelating discrete cosine transformation. Especially, the lower MFCC bands describe the coarse form of the spectral envelope which correlates to timbre. For deriving MFCC-ENS features (MFCC Energy Normalized Statistics), these MFCC features are quantized, smoothed (in temporal direction), and normalized with respect to the ℓ2-norm.

Furthermore, we present a novel variant of MFCC-ENS features by prior weighting the spectrogram by the second derivative of the spectral phase information in the time domain. This indicates slight changes in pitch which typically occur in vocals and which are not present in piano music. Especially the harmonics of piano-played notes are attenuated by this method which leads to smaller spectral envelopes in the piano sections and hence to more discriminative timbre-related MFCC features.

Literature

  • Steven Davis, Paul Mermelstein: Comparison of parametric representations for monosyllabic word recognition in continuously spoken sentences, Readings in Speech Recognition 1990, pp. 65–74.
  • Hiroko Terasawa, Malcolm Slaney, Jonathan Berger: The thirteen colors of timbre, WASPAA 2005, pp. 323–326.
  • Dirk v. Zeddelmann, Frank Kurth: A construction of compact MFCC-type features using short-time statistics for applications in audio segmentation, EUSIPCO 2009, pp. 1504–1508.
