12. Einsamkeit. (Loneliness/Solitude)

feature TEMPOidx representation

Piece:

12. Einsamkeit

Durchkomponiertes Lied in h-Moll mit drei Strophen. [more]

Musical aspect/feature:

tempo/cyclic+idx

Cyclic Fourier tempogram (8 sec) correlated to rhythm (intensity) and tempo (color). [more]

Recording:

Gardner Museum: Scarlata, 2006

Singer: Randall Scarlata (Baritone), Piano: Jeremy Denk. Recording of a performance at the Isabella Stewart Gardner Museum, Boston.

Source, License: CC BY-NC-ND 2.0

Information about our segmentation of »12. Einsamkeit«

Durchkomponiertes Lied in h-Moll mit drei Strophen.
Die Segmentierung entspricht der Stropheneinteilung, wobei die dritte Strophe als Einzige wiederholt wird (Segmente C1 und C2).
Der gesungene Part lässt sich musikalisch in drei Segmente unterteilen: A, B und C.
Das achttaktige Segment A lässt sich wiederum in zwei Teile aufspalten: ein viertaktiges Motiv (T. 7-10 mit Auftakt) und seine genaue Wiederholung (T. 11-14 mit Auftakt).
Das achttaktige Segment B lässt sich ebenso wie A in zwei Teile aufspalten: ein viertaktiges Motiv (T. 15-18 mit Auftakt) und seine leicht variierte Wiederholung (T. 19-22 mit Auftakt).
Auch das Segment C besteht aus zwei nahezu identischen Teilen: C1 und C2, wobei C2 einen anderen Schluss als C1 hat.

Lyrics: Project Gutenberg

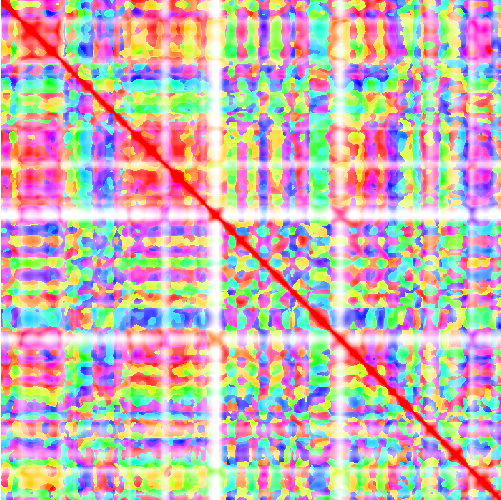

Tempogram

This feature corresponds to rhythmic properties of a musical piece as well as tempo. A tempogram is computed similar to a spectrogram by short-time Fourier transform or using autocorrelation function. It represents periodic occurances of high energy in the waveform and hence is used to estimate tempo and beat positions. To reduce jumps between a certain tempo value and its multiples, a cyclic variant is used where we identify all tempo multiples similar to the computation of chroma from pitch features. Subsequently, the resulting tempo features are quantized, smoothed (in temporal direction), and normalized with respect to the ℓ2-norm.

In the spirit of the transposition-invariant chroma-based SSM, we compute something similar for cyclic tempo features also. Although the properties of this matrix are not discovered yet, we present this representation to show that the transposition index carries some meaningful information. We guess that this can be used to separate information about rhythm and tempo. In this case, we use a standard HSV colormap.

Literature

  • Geoffroy Peeters: Time variable tempo detection and beat marking, ICMC 2005.
  • Peter Grosche, Meinard Müller, Frank Kurth: Cyclic tempogram – a mid-level tempo representation for music signals, ICASSP 2010, pp. 5522–5525.
  • Peter Grosche, Meinard Müller: Tempogram toolbox: Matlab implementations for tempo and pulse analysis of music recordings., ISMIR 2011.
